Description

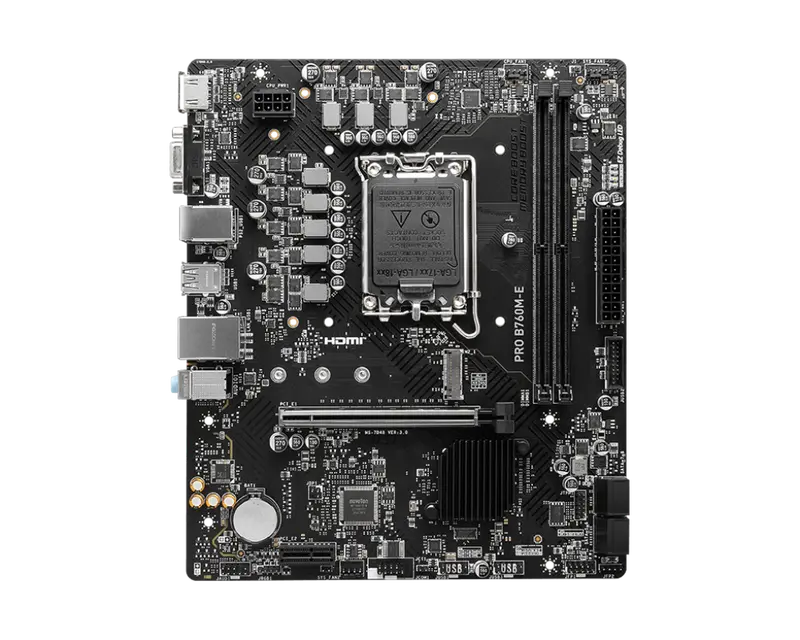

Micro-ATX Intel B760 motherboard for LGA1700. Supports 14th, 13th, and 12th Gen Intel Core processors. Dual-channel DDR5. PCIe 4.0 x16 and M.2 Gen4 x4 for fast storage. HDMI 1.4 and VGA display outputs. Gigabit LAN and Audio Boost.
Key Features
- DDR5 support with MSI Memory Boost
- Lightning Gen4: PCIe 4.0 and M.2 Gen4 x4
- PCIe Steel Armor on the x16 slot
- EZ Debug LED for quick troubleshooting
- Frozr AI Cooling fan control
- Core Boost power design
- Audio Boost 7.1-channel HD audio
Specifications
- Chipset: Intel B760
- CPU Socket / Support: LGA1700; Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron
- Form Factor: Micro-ATX
- Memory: 2 × DDR5 DIMM, dual-channel, up to 6400+ MHz (OC)
- Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
- Storage: 1 × M.2 Gen4 x4 (64 Gbps), 4 × SATA 6 Gbps
- Display Outputs: HDMI 1.4 (4K@30Hz), VGA
- USB (rear + internal total): up to 4 × USB 3.2 Gen1 Type-A, up to 8 × USB 2.0
- LAN: Realtek 1 GbE
- Audio: 7.1-channel HD Audio with Audio Boost
