Description

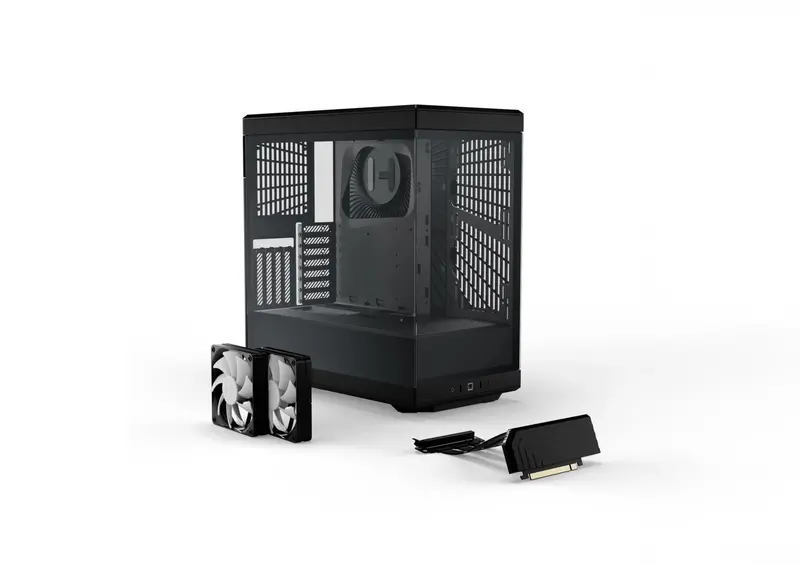

The HYTE Y40 Panoramic Tempered Glass With Two 120mm Fans, PCI-E 4.0 Vertical Mount Included ATX Mid Tower Case, Black is designed for gaming PC builds that combine modern aesthetics with strong cooling performance and flexible hardware compatibility. The case features a panoramic tempered glass design that provides a clear and unobstructed view of the internal components, allowing users to showcase their graphics card, cooling system, and lighting setup.
The HYTE Y40 Panoramic Tempered Glass With Two 120mm Fans, PCI-E 4.0 Vertical Mount Included ATX Mid Tower Case, Black expands on the vertical graphics card layout introduced in earlier designs. It supports vertical GPU installation using the included PCI-E 4.0 riser cable, allowing the graphics card to be displayed through the panoramic glass while maintaining airflow space between the GPU and the glass panel.
Cooling performance is a core part of the HYTE Y40 Panoramic Tempered Glass With Two 120mm Fans, PCI-E 4.0 Vertical Mount Included ATX Mid Tower Case, Black design. The case includes two pre-installed 120 mm fans positioned to improve airflow inside the chassis. The layout also supports additional fans and radiators, allowing builders to install liquid cooling systems up to 360 mm for high-performance CPU cooling.
The case supports large hardware components, including graphics cards up to 422 mm in length and air coolers up to 183 mm in height. This ensures compatibility with modern gaming hardware and high-performance cooling solutions.
The HYTE Y40 Panoramic Tempered Glass With Two 120mm Fans, PCI-E 4.0 Vertical Mount Included ATX Mid Tower Case, Black also includes a structured cable management system with dedicated routing channels and tie-down points behind the motherboard tray. This helps keep cables organized, improves airflow, and creates a cleaner internal appearance.
Key Features
• Panoramic tempered glass panels for clear component visibility
• Vertical graphics card support with included PCI-E 4.0 riser cable
• Dual-chamber style internal layout for better airflow and cable routing
• Two pre-installed 120 mm cooling fans
• Supports up to 7 cooling fans across the case
• Supports liquid cooling radiators up to 360 mm
• Supports large graphics cards up to 422 mm length
• Supports CPU air coolers up to 183 mm height
• Dedicated cable management channels and tie-down points
• Front panel with USB Type-C, USB Type-A, and audio connections
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Product Model | Model | HYTE Y40 |
| Case Type | Form Factor | ATX Mid Tower |
| Case Dimensions | Size | 439 × 240 × 472 mm |
| Motherboard Support | Compatible Formats | Mini-ITX, Micro-ATX, ATX |
| Case Material | Construction | Steel and Tempered Glass |
| Included Fans | Cooling Fans | 2 × 120 mm Fans |
| Maximum Fan Support | Total Fans | Up to 7 Fans |
| Radiator Support Top | Liquid Cooling | Up to 360 mm |
| Radiator Support Side | Liquid Cooling | Up to 280 mm |
| Radiator Support Rear | Liquid Cooling | 120 mm |
| Maximum GPU Length | Clearance | 422 mm |
| Maximum CPU Cooler Height | Clearance | 183 mm |
| Power Supply Support | PSU Length | Up to 224 mm |
| Storage Support | Drive Bays | 1 × 3.5 inch HDD or 2 × 2.5 inch SSD |
| Expansion Slots | Slots | 4 Full + 6 Half Height |
| Riser Cable | Interface | PCI-E 4.0 ×16 (Included) |
| Front USB Ports | Connectivity | 2 × USB 3.0 Type-A |
| Front Type-C | Connectivity | 1 × USB 3.2 Type-C |
| Audio Port | Connectivity | 1 × Audio / Microphone Combo |
| Dust Filters | Locations | Top, Side, Bottom |
| Color | Finish | Black |
User Benefits
• Showcases internal hardware through panoramic glass panels
• Improves GPU presentation with vertical mounting support
• Supports modern high-performance graphics cards
• Provides flexible cooling with support for multiple fans and radiators
• Simplifies cable organization for cleaner builds
• Compatible with modern gaming hardware and cooling systems
Included Items
• HYTE Y40 Panoramic Tempered Glass ATX Mid Tower Case, Black
• PCI-E 4.0 vertical graphics card riser cable
• Two 120 mm cooling fans
• Installation accessories
• User documentation
