Description
The ASUS PRIME B650M-K is a Micro-ATX motherboard designed for AMD Ryzen 7000 and 9000 series processors with the AM5 socket. It provides stable performance, DDR5 memory support, PCIe 4.0 connectivity, and multiple M.2 slots, making it a reliable choice for gaming and productivity in compact builds.
Key Features
- Supports AMD Ryzen 9000 and 7000 Series processors (AM5)
- Micro-ATX form factor for smaller cases
- Dual-channel DDR5 memory support
- PCIe 4.0 x16 slot for modern GPUs
- Dual M.2 PCIe 4.0 slots for fast NVMe SSDs
- Realtek 2.5Gb Ethernet for high-speed networking
- Multiple USB ports including USB 3.2 Gen 2 Type-C
- ASUS 5X Protection III for durability and reliability
- Fan Xpert 2+ software for advanced cooling management
Specifications Table
| Feature | Details |
|---|---|
| Brand | ASUS |
| Series | PRIME |
| Model | B650M-K |
| Form Factor | Micro-ATX |
| CPU Socket | AMD AM5 |
| Chipset | AMD B650 |
| Memory Support | DDR5, Dual Channel, up to 128GB, speeds up to 6400+ MT/s (OC) |
| PCIe Support | 1 x PCIe 4.0 x16 (GPU), 1 x PCIe 4.0/3.0 slots |
| Storage | 2 x M.2 PCIe 4.0 slots, 4 x SATA 6Gb/s ports |
| Networking | Realtek 2.5Gb Ethernet |
| Audio | High-definition 8-channel audio |
| USB Ports | USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0 |
| Cooling | VRM & chipset heatsinks, multiple fan headers |
| Durability | ASUS 5X Protection III, reinforced PCIe slots |
| RGB Support | Compatible with Aura Sync devices (via headers) |
| Compatibility | AMD Ryzen 9000 / 7000 Series CPUs |

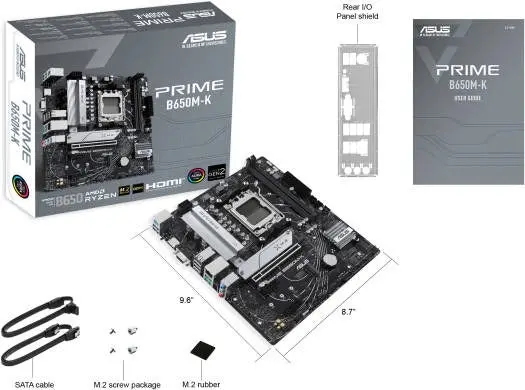

| In the Box | Motherboard, SATA cables, M.2 screws, User manual |
